VOR, GPS and Area Navigation

Summary

The VOR gives heading-independent left/right and TO/FROM guidance along a selected radial; GPS-based RNAV gives precise position and direct waypoint-to-waypoint navigation, with traditional skills kept as backup.

Pilot Institute Airplanes · third-party video

Also watch

Speed 1 times
Quick check ▾

One question on what you just read.

Question 1 of 1

VOR navigation · Topic mastery: Not started

Exit

0 of 1 answered

A VOR transmits radials measured in what reference?

Choose one answer
Knowledge check (4) →Ask about this lessonAll lessons in this module

Why this matters in flight

Electronic navigation lets you fly precisely beyond sight of landmarks. Knowing how a VOR radial works, and how GPS-based RNAV differs, lets you use these aids correctly and recognize when to fall back on pilotage and dead reckoning.

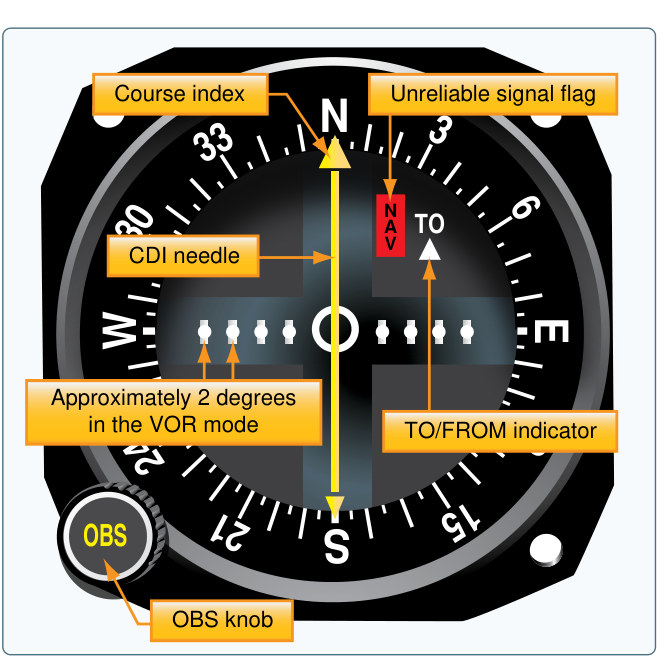

Figure 16-29. VOR indicator with the CDI needle, OBS knob, and TO/FROM flag labeled.
Figure 16-29. VOR indicator with the CDI needle, OBS knob, and TO/FROM flag labeled.Pilot’s Handbook of Aeronautical Knowledge (FAA-H-8083-25C) · public domain

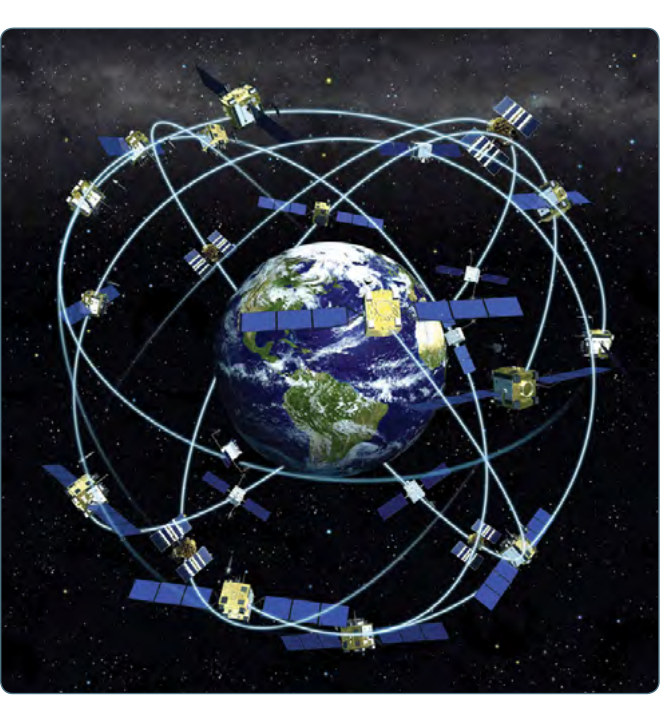

Figure 16-40. GPS satellite constellation orbiting Earth, the basis for area navigation.
Figure 16-40. GPS satellite constellation orbiting Earth, the basis for area navigation.Pilot’s Handbook of Aeronautical Knowledge (FAA-H-8083-25C) · public domain

The VOR broadcasts 360 radials, each a magnetic bearing outward from the station. You select a course with the omni-bearing selector; the course deviation indicator then shows whether you are left or right of that course, and a TO/FROM flag tells you whether the course leads to or away from the station. A crucial point is that a VOR indication does not depend on your heading — it reflects only your position relative to the selected radial. GPS works differently: a satellite-based receiver computes your precise position, groundspeed, and course anywhere, and it enables area navigation (RNAV), which lets you fly directly between arbitrary waypoints instead of station to station. GPS depends on receiving several satellites and uses integrity monitoring such as RAIM, so a prudent pilot keeps traditional navigation skills sharp in case of an outage. Distance measuring equipment (DME) complements these aids by reading out the nautical-mile distance to a DME-equipped station like a VOR/DME or VORTAC. DME measures slant range — the straight-line distance to the station — rather than horizontal distance, so directly overhead a station it shows roughly your height above it, and many units also display groundspeed and time to the station.

Key terms

Radial
A magnetic bearing outward from a VOR station.
Course deviation indicator
The instrument showing left/right displacement from a selected course.
RNAV
Area navigation allowing direct flight between defined waypoints.
DME
Distance measuring equipment — shows slant-range distance in nautical miles to a DME station.
Slant range
The straight-line distance from the aircraft to a station, which DME measures (not horizontal distance).
